202590

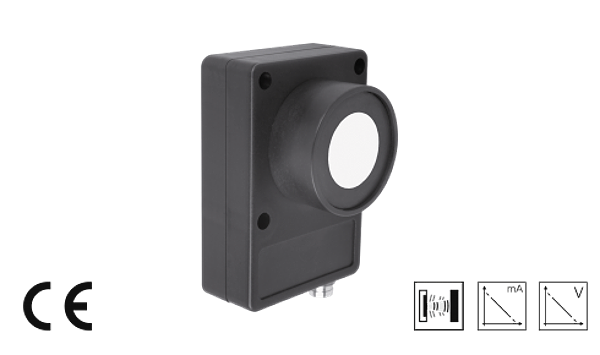

US 60 K 1000 AI-I-TSSL
Ultrasonic Sensor
Robust casing. Compact design. Zero and full scale adjustable. Scanning range adjustable. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. Analog output. High follow-up speed. High resolution. Piezo-ceramic composite transducer
Operating principle: | Ultrasonic sensor |
Evaluation: | analog |
Size: | 60 x 41 x 18 mm (Dimensions) |
Design: | cuboid design |
Service voltage: | 15 ... 30 V DC |
No-load current: | 80 mA |
Operating distance: | 135 ... 1500 mm |
Resolution: | 0,1 % / Sn max. |
Switching output: | Analog output (2x) |
Analog output: | 10 ... 0 V, 20 ... 4 mA |
Measuring time: | 250 ms (95% Sn max.) |
Sound frequency: | 180 kHz |
Ripple: | 20 mV |
Linearity analog output: | < 0,5 % / Sn max. |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Accuracy: | < 1 % / Sn max. |
Ambient temperature, operation: | -20 … +50 °C |
Temperature drift: | 1 % (-20 ... +50°C) |
Load resistance: | > 10000 Ω / < 400 Ω |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Casing material: | polyamide |
Connection: | Connector, M8, 4-poled |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.13 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
