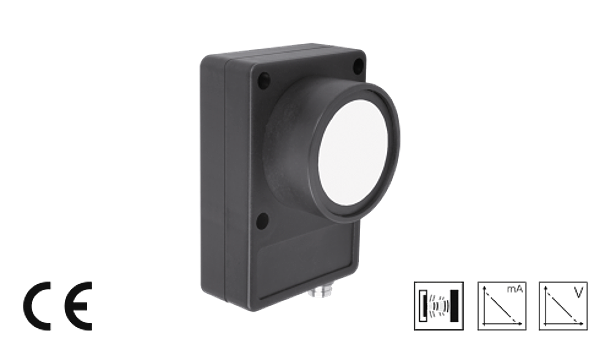

US 60 K 2500 AI-I-TSSL

Ultrasonic Sensor

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Robust casing. Compact design. Zero and full scale adjustable. Scanning range adjustable. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. Analog output. High follow-up speed. High resolution. Piezo-ceramic composite transducer

Downloads

Technical parameters

Operating principle: Ultrasonic sensor
Evaluation: analog
Size: 60 x 41 x 33 mm (Dimensions)
Design: cuboid design
Service voltage: 15 ... 30 V DC
No-load current: 80 mA
Operating distance: 250 ... 3000 mm
Resolution: 0,1 % / Sn max.
Switching output: Analog output (2x)
Analog output: 10 ... 0 V, 20 ... 4 mA
Measuring time: 400 ms (95% Sn max.)
Sound frequency: 120 kHz
Ripple: 15 mV
Linearity analog output: < 0,5 % / Sn max.
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Accuracy: < 1 % / Sn max.
Ambient temperature, operation: -20 … +50 °C
Temperature drift: 1 % (-20 ... +50°C)
Load resistance: > 10000 Ω / < 400 Ω
Insulation voltage endurance: 500 V
Protection class: IP 67
Casing material: polyamide
Connection: Connector, M8, 4-poled

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.13 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
