202431

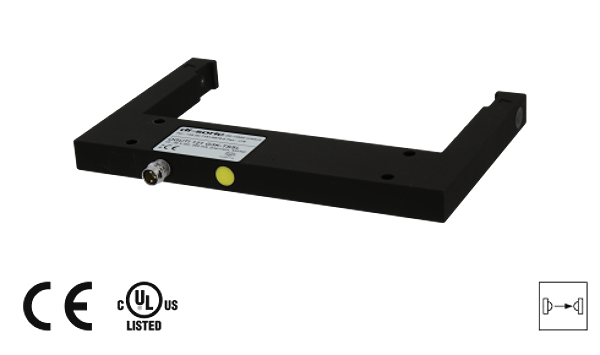

OGUTI121FG3K-TSSL
Fork Light Barrier
Fast, simple, reliable: sensitivity adjustment via the teach key. Auto-teach during a running process. Remote teach option with key-lock function. LED indicator for the teach procedure. Large insertion depth for ideal probing position. Detection of even the smallest objects. Large functional reserve. Light/dark switching. 5-year warranty
Operating principle: | Optical |
Evaluation: | digital |
Size: | 144 x 90 x 12 mm (Dimensions) |
Design: | fork |
Fork opening: | 120 mm |
Branch length inside: | 60 mm |
Emitted light: | Red, 660 nm, clocked |
Service voltage: | 10 ... 35 V DC (Supply Class 2) |
No-load current: | < 35 mA |
Sensitivity adjustment: | Teach key + remote teach |
Switching output: | Push pull, 200 mA, NO/NC, switchable |
Switching hysteresis: | < 0,15 mm |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Voltage drop: | < 2,0 V |
Switching frequency: | < 1500 Hz |
Reproducibility: | < 0,05 mm |
Ambient temperature, operation: | -10 … +60 °C |
Ambient light immunity: | 20 kLx |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Protection degree: | III, operation on protective low voltage |
Casing material: | Die-cast zinc black lacquered finish |
Connection: | Connector, M8, 4-poled |
Connecting cable: | TK ... /4 |
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.09 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
