Article image 202429

Di-soric 202429

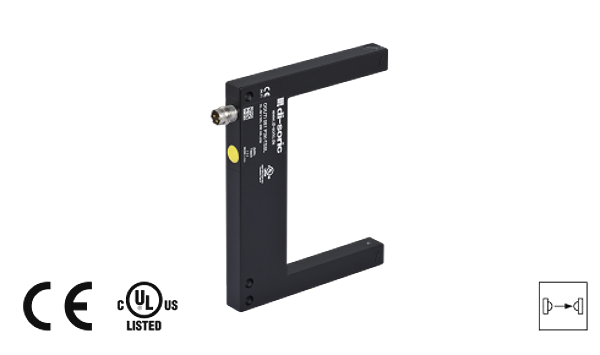

OGUTI 081 FP3K-TSSL

Fork Light Barrier

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Fast, simple, reliable: sensitivity adjustment via the teach key. Auto-teach during a running process. Remote teach option with key-lock function. LED indicator for the teach procedure. Detection of even the smallest objects. Large functional reserve. Light/dark switching. 5-year warranty

Downloads

Technical parameters

Operating principle: Optical
Evaluation: digital
Size: 100 x 80 x 10 mm (Dimensions)
Design: fork
Fork opening: 80 mm
Branch length inside: 55 mm
Emitted light: Red, clocked
Service voltage: 10 ... 35 V DC (Supply Class 2)
No-load current: < 30 mA
Resolution: Ø 0,3 mm
Sensitivity adjustment: Teach key + remote teach
Switching output: pnp, 200 mA, NO/NC, switchable
Switching hysteresis: < 0,1 mm
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Voltage drop: < 2,0 V
Switching frequency: < 3,0 kHz
Reproducibility: < 0,03 mm
Ambient temperature, operation: -10 … +60 °C
Ambient light immunity: 20 kLx
Insulation voltage endurance: 500 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Casing material: Die-cast zinc black lacquered finish
Connection: Connector, M8, 4-poled
Connecting cable: TK ...

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.13 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
