Article image 202417

Di-soric 202417

OGUTID 081 P3K-TSSL

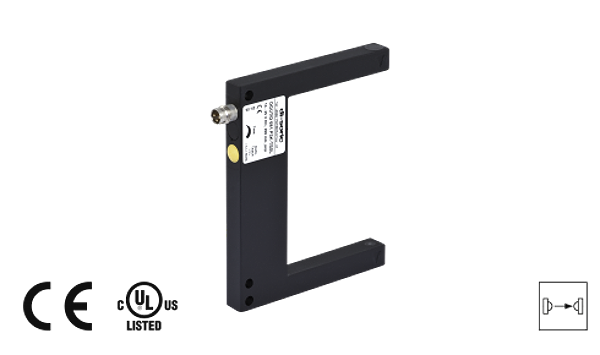

Fork Light Barrier

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Adjustable pulse stretching. High resolution. Dynamic operating principle. LED indicator for the teach procedure. High functional reserve. Light/dark switching. 5-year warranty

Downloads

Technical parameters

Operating principle: Optical
Evaluation: dynamic
Size: 100 x 80 x 10 mm (Dimensions)
Design: fork
Fork opening: 80 mm
Branch length inside: 55 mm
Emitted light: Red, 660 nm, clocked
Service voltage: 10 ... 35 V DC (Supply Class 2)
No-load current: < 30 mA
Resolution: Ø 0,15 mm
Sensitivity adjustment: Teach key
Switching output: pnp, 200 mA, NO/NC, switchable
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Minimum parts speed: 5 cm/s
Pulse stretching: 5 ... 150 ms adjustable (at max.: 1000 ms)
Voltage drop: < 2,0 V
Switching frequency: 100 Hz, (depending on the pulse stretching)
Response-/release time: 0,10 ms
Ambient temperature, operation: -10 … +60 °C
Ambient light immunity: 15 kLx
Insulation voltage endurance: 500 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Casing material: Die-cast zinc black lacquered finish
Connection: Connector, M8, 3-poled
Connecting cable: TK ...

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.13 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
