Product
Di-soric
202407
BK-Z-8/4/S
Request a Quote
Image copyright: Di-soric

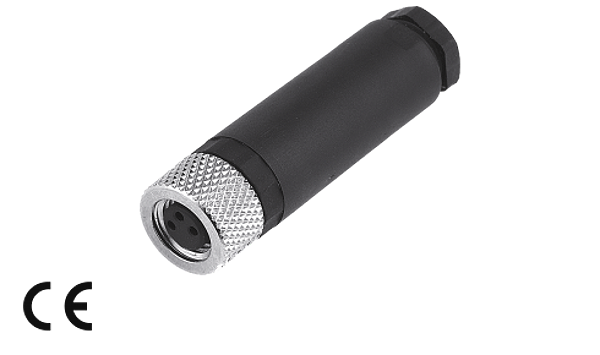

Di-soric 202407
BK-Z-8/4/S
Connector
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Plastic housing. Metal screw. Connection clamps. High protection class by IP 67
Downloads
Technical parameters
| Design: | straight |
| Protection class: | IP 67 |
| Casing material: | plastics |
| Connection sensor side: | Socket, M8x1, 4-poled |
| Connection control side: | Field-wireable, Connecting clamps, 4-poled |
| For cable diameters: | 3,5 ... 5,0 mm |
| For stranded wire cross section: | 0,25 ... 0,34 mm² |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.01 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
