Product
Di-soric
201499
ORVTI 51 M 2000 P3K-TSSL
Request a Quote

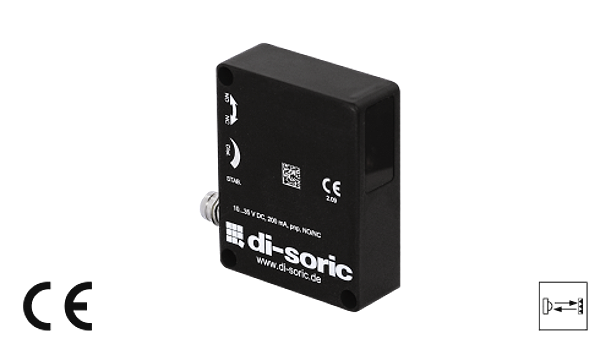

Image copyright: Di-soric
Di-soric 201499
ORVTI 51 M 2000 P3K-TSSL
Retroreflective Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Red light. Polarized filter. Teach function. High operating frequency. Bright ring LED. Light/dark switching. Functional reserve indicator/contamination indicator. Robust metal casing
Downloads
Technical parameters
| Operating principle: | Retroreflective sensor |
| Evaluation: | digital |
| Size: | 50 x 40 x 15 mm (Dimensions) |
| Design: | cuboid design |
| Characteristics: | Integrated polarized filter |
| Emitted light: | Red, 660 nm, clocked |
| Operating distance: | 40 … 2000 mm adjustable |
| Service voltage: | 10 ... 35 V DC |
| No-load current: | < 40 mA |
| Sensitivity adjustment: | Teach key |
| Referring reflector: | 100 x 100 mm |
| Switching output: | pnp, 200 mA, NO/NC, switchable |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 1000 Hz |
| Response-/release time: | 0,50 ms / 0,50 ms |
| Ambient temperature, operation: | -10 … +60 °C |
| Ambient light immunity: | 20 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Die-cast zinc black lacquered finish |
| Material: | polymethyl methacrylate (Window) |
| Connection: | Connector, M8, 3-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.10 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
