Article image 201471

Di-soric 201471

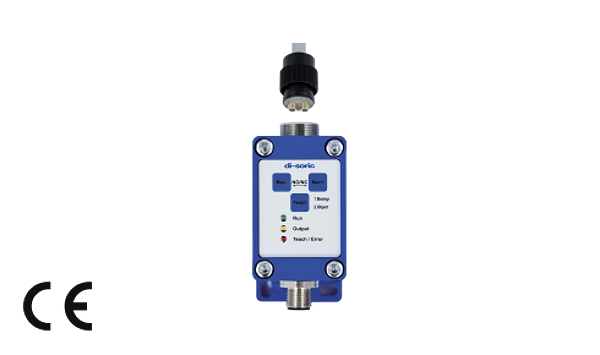

OLVTI 41 P3K-IBS

Amplifier for glass fiber optics

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Light/dark switching. Sensitivity via external teach input or via push buttons adjustable. Metal casing. Red light. High operating frequency. Metal connector. High protection class

Downloads

Technical parameters

Amplifier for: Glass fiber optics M18
Evaluation: digital
Emitted light: Red, 660 nm, clocked
Service voltage: 10 ... 35 V DC
No-load current: < 45 mA
Control elements: 3 (Teach, Man-, Man+)
Operating distance: 60 mm
Sensitivity adjustment: Teach key + remote teach
Switching output: pnp, 200 mA, NO/NC, programmable
Switching hysteresis: < 12 %
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Display: LED: green - Run, yellow - Output, red - Teach / Error
Voltage drop: < 2,8 V
Switching frequency: 1500 Hz
Reproducibility: < 2 %
Ambient temperature, operation: -10 … +60 °C
Ambient light immunity: 50 kLx
Insulation voltage endurance: 500 V
Protection class: IP 65
Casing material: Die-cast zinc lacquered finish
Connection: Connector, M12, 4-poled

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.32 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
