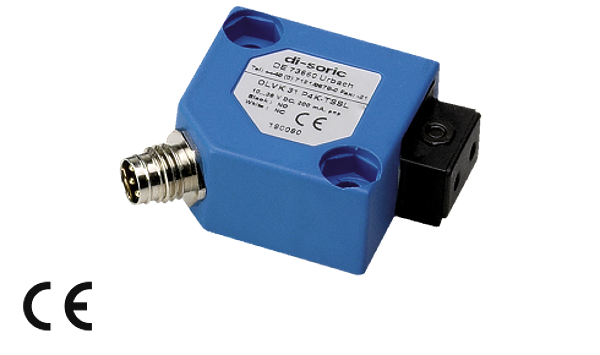

OLVK 31 P4K-TSSL

Amplifier for plastic fiber optics

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Compact plastic casing. Easy-to-install. Red light. Sensitivity adjustable. High operating frequency. Dark- and/or light switching. Protection against short-circuit and reverse polarity

Downloads

Technical parameters

Amplifier for: Plastic fiber optics 2x2,2 mm
Evaluation: digital
Size: 30 x 30 x 15 mm (Dimensions)
Emitted light: Red, 660 nm, clocked
Service voltage: 10 ... 36 V DC
No-load current: < 15 mA
Sensitivity adjustment: potentiometer
Switching output: pnp, 200 mA, exclusive OR
Switching hysteresis: < 10 %
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Voltage drop: < 2,0 V
Switching frequency: 5000 Hz
Response-/release time: 0,50 ms / 0,50 ms
Ambient temperature, operation: -25 … +55 °C
Temperature drift: 0,3 %/K
Ambient light immunity: 10 kLx
Insulation voltage endurance: 1.000 V
Protection class: IP 67
Casing material: plastics (PBT)
Connection: Connector, M8, 4-poled

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.03 kg
