Di-soric 201412

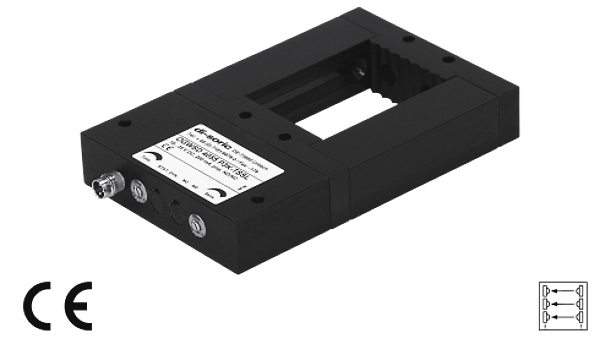

OGWSD 4055 P3K-TSSL

Frame Light Barrier

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Buffle protection at the optics. Metal potentiometer. Cross bar, removable. Air nozzle for the optics. NO/NC switchable. Variable operating principle: dynamic or static. Sensitivity adjustment. Pulse stretching adjustable. High resolution. Short response time

Downloads

Technical parameters

Operating principle: Dynamic/static switchable, Optical
Active zone: 40 x 49 mm
Emitted light: Infrared, 880 nm, clocked
Service voltage: 18 ... 35 V DC
No-load current: < 30 mA
Resolution: Ø 0,7 mm (dynamic), Ø 1 mm (static)
Sensitivity adjustment: potentiometer
Switching output: pnp, 200 mA, NO/NC, switchable
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Pulse stretching: 0,1 ... 150 ms adjustable
Voltage drop: < 2,5 V
Response-/release time: 0,10 ms / 0,10 ... 150 ms
Ambient temperature, operation: 0 … +60 °C
Ambient light immunity: 20 kLx
Insulation voltage endurance: 500 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Casing material: Aluminium black anodized
Connection: Connector, M8, 3-poled
Connecting cable: TK ...

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.38 kg
