Di-soric 201406

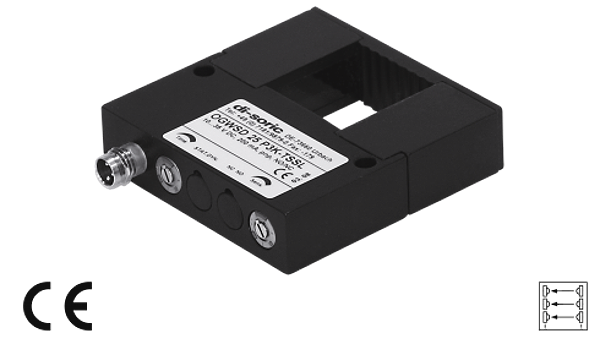

OGWSD 25 P3K-TSSL

Frame Light Barrier

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Robust metal casing. Metal potentiometer. Cross bar, removable. Easy-to-install. NO/NC switchable. Variable operating principle: dynamic or static. Sensitivity adjustment. Pulse stretching adjustable. High resolution. Short response time

Downloads

Technical parameters

Operating principle: Dynamic/static switchable, Optical
Active zone: 25 x 23 mm
Emitted light: Infrared, 880 nm, clocked
Service voltage: 10 ... 35 V DC
No-load current: < 25 mA
Resolution: Ø 0,7 mm (dynamic), Ø 1 mm (static)
Sensitivity adjustment: potentiometer
Switching output: pnp, 200 mA, NO/NC, switchable
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Pulse stretching: 0,1 ... 150 ms adjustable
Voltage drop: < 2,0 V
Response-/release time: 0,10 ms / 0,10 ... 150 ms
Ambient temperature, operation: 0 … +60 °C
Ambient light immunity: 30 kLx
Insulation voltage endurance: 500 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Casing material: Aluminium black anodized
Connection: Connector, M8, 3-poled
Connecting cable: TK ...

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.10 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
