Article image 201283

Di-soric 201283

OGU 051 VP3K-TSSL

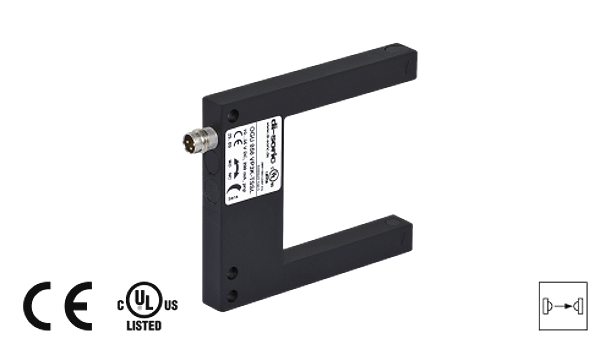

Fork Light Barrier

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Light/dark switching. Adjustable from the front. Metal casing. Integrated electronic module. Sensitivity adjustable. High operating frequency. Bright ring LED. High protection class. 5-year warranty

Downloads

Technical parameters

Operating principle: Optical
Evaluation: digital
Size: 70 x 80 x 10 mm (Dimensions)
Design: fork
Fork opening: 50 mm
Branch length inside: 55 mm
Emitted light: Red, clocked
Service voltage: 10 ... 35 V DC (Supply Class 2)
No-load current: < 30 mA
Resolution: Ø 0,5 mm
Sensitivity adjustment: potentiometer in front
Switching output: pnp, 200 mA, NO/NC, switchable
Switching hysteresis: < 0,25 mm
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Voltage drop: 2,8 V
Switching frequency: 4000 Hz
Reproducibility: 0,04 mm
Ambient temperature, operation: -10 … +60 °C
Ambient light immunity: 40 kLx
Insulation voltage endurance: 500 V
Protection class: IP 67
Protection degree: III, operation on protective low voltage
Casing material: Die-cast zinc black lacquered finish
Connection: Connector, M8, 3-poled
Connecting cable: TK ...

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.11 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
