Article image 200424

Di-soric 200424

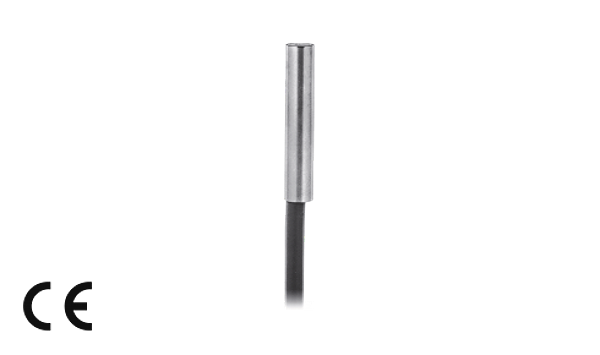

DCC 6.5 V 02 PSLK

Inductive Proximity Switch

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Cable, highly flexible. Integrated amplifier. Short-circuit protection. Starting pulse suppression. LED

Downloads

Technical parameters

Operating principle: Inductive
Evaluation: digital
Size: Ø 6,5 mm (Diameter)
Design: cylinder
Mounting: flush
Characteristics: increased operating distance
Operating distance: 2 mm
Standardized measuring plate: 6,5 x 6,5 x 1 mm
Service voltage: 10 ... 30 V DC
No-load current: < 10 mA
Switching output: pnp, 200 mA, NO
Switching hysteresis: 5 %
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Voltage drop: < 2,0 V
Switching frequency: 3000 Hz
Ambient temperature, operation: -25 … +70 °C
Insulation voltage endurance: 500 V
Protection class: IP 67
Casing material: stainless steel
Material: PVC (Cable)
Connection: Cable, 2,0 m

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.04 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
