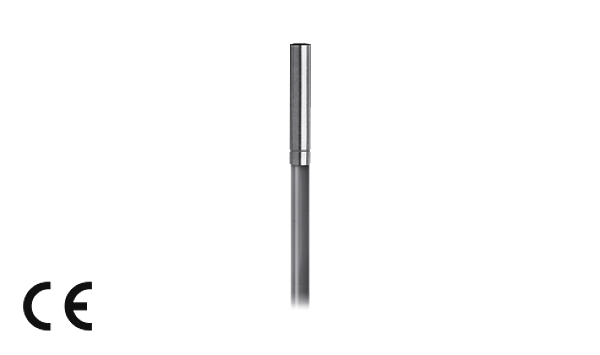

Article image 200392

Di-soric 200392

DCC4.0V0.6NSLK-E

Inductive Proximity Switch

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Pressure resistant version up to 20 bar. Stainless steel casing. Sensing surface sapphire. Cable, highly flexible. Integrated amplifier. Short-circuit protection. Starting pulse suppression

Downloads

Technical parameters

Operating principle: Inductive
Evaluation: digital
Size: Ø 4,0 mm (Diameter)
Design: cylinder
Mounting: flush
Characteristics: up to 20 bar, pressure resistant
Operating distance: 0,6 mm
Standardized measuring plate: 4 x 4 x 1 mm
Service voltage: 10 ... 30 V DC
No-load current: < 10 mA
Switching output: npn, 200 mA, NO
Switching hysteresis: < 10 %
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Voltage drop: < 2,0 V
Switching frequency: 5000 Hz
Ambient temperature, operation: -25 … +70 °C
Insulation voltage endurance: 500 V
Protection class: IP 68
Casing material: stainless steel, Sapphire
Material: PUR (Cable)
Connection: Cable, 2,0 m

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.02 kg
