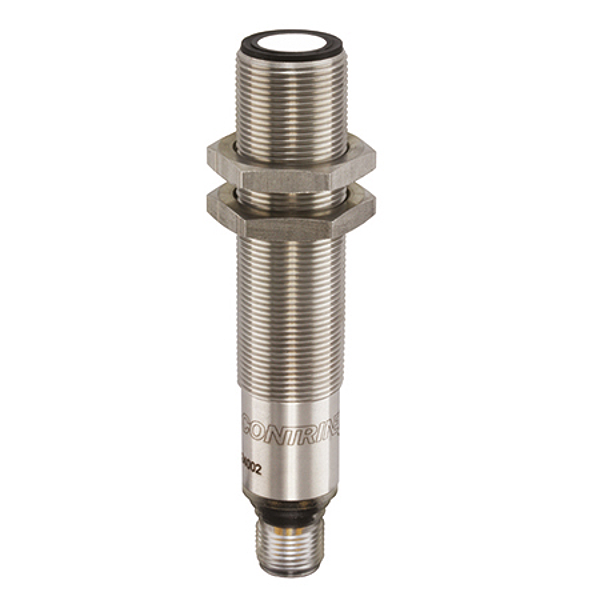

Article image UST-M18MS-TMS-729

Contrinex UST-M18MS-TMS-729

605-010-283

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Diffuse
Range max.: 100...900 mm
Housing size [mm]: M18
Polarity: NPN + analog
Output: 2 NO (default)/NC + 4...20 mA
Interface: Standard output
Connection: M12 5-pin
Supply voltage: 10...30 VDC
Switching frequency max. [Hz]: 4
Housing material: Stainless steel
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
