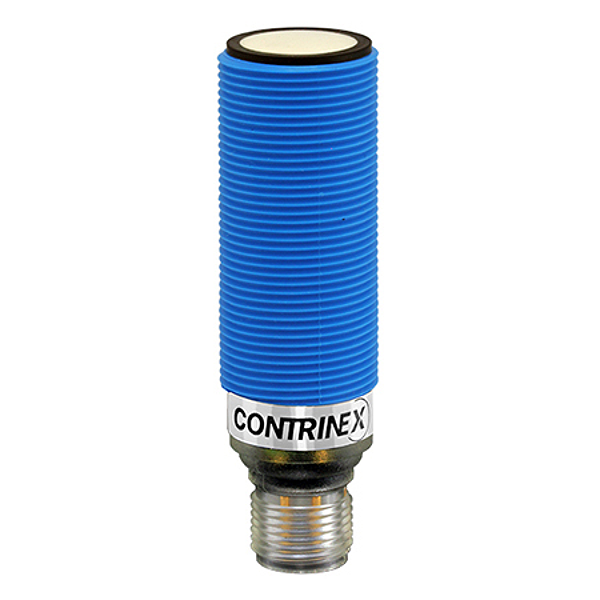

Article image USR-M18PC-WSS-301

Contrinex USR-M18PC-WSS-301

605-010-237

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Reflex
Range max.: 0...300 mm
Housing size [mm]: M18
Polarity: NPN
Output: NO (default)/NC
Interface: Standard output
Connection: M12 4-pin
Supply voltage: 10...30 VDC
Switching frequency max. [Hz]: 8
Housing material: PBT
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
