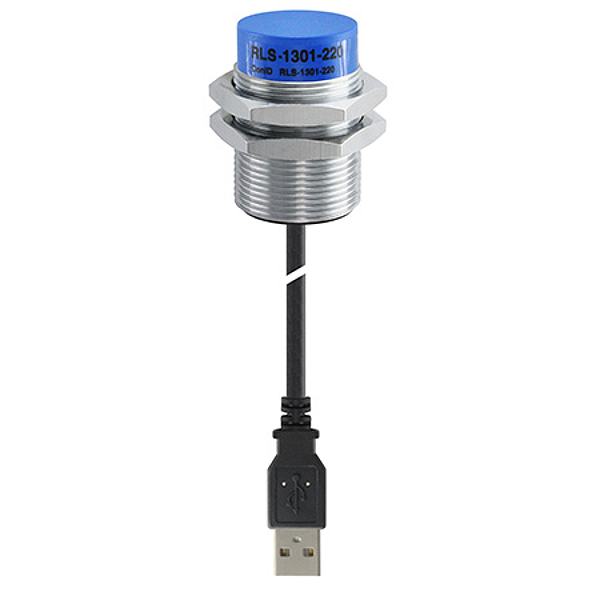

Article image RLS-1301-220

Contrinex RLS-1301-220

720-100-109

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Product type: Read/write module
Operating frequency: 13.56 MHz
Standard: ISO/IEC 15693
Read/Write distance max.: 60 mm
Housing size [mm]: M30
Housing material: Chrome-plated brass
Mounting: non-embedabble
Supply voltage: 5 VDC/USB
Interface: ContriNET USB x RFID
Connection: USB A male
Temperature range: -25...70 °C
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
