Article image LTS-1120-302

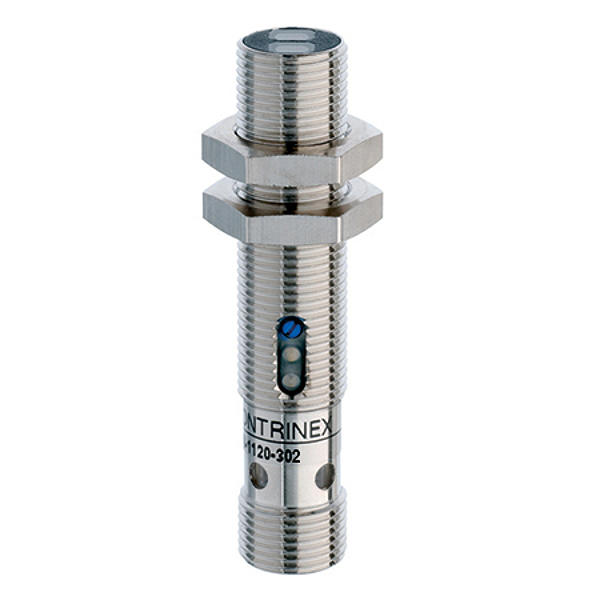

Contrinex LTS-1120-302

620-200-304

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Diffuse
Light source: LED, red 660 nm
Housing size [mm]: M12
Sensitivity adjustment: 3/4-turn potentiometer
Polarity: NPN
Output: Dark-on
Interface: Standard output
Connection: M12 4-pin
Supply voltage: 10...36 VDC
Switching frequency max. [Hz]: 1000
Housing material: Chrome-plated brass
Temperature range: -25...55 °C
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
