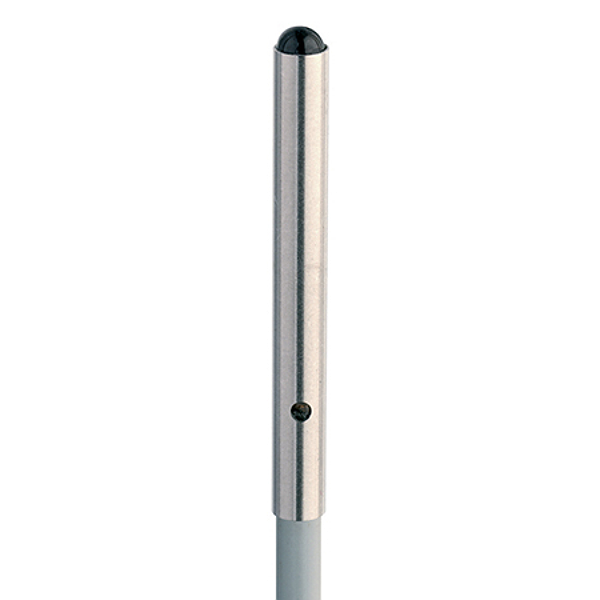

Article image LTK-1040-303-505

Contrinex LTK-1040-303-505

620-200-786

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Diffuse
Light source: LED, infrared 880 nm
Housing size [mm]: Ø 4
Sensitivity adjustment: No
Polarity: PNP
Output: Light-on
Interface: Standard output
Connection: PVC, 2 m, 3 wire
Supply voltage: 10...30 VDC
Switching frequency max. [Hz]: 250
Housing material: Stainless steel V2A
Temperature range: 0...55 °C
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
