Article image LRK-4150-101

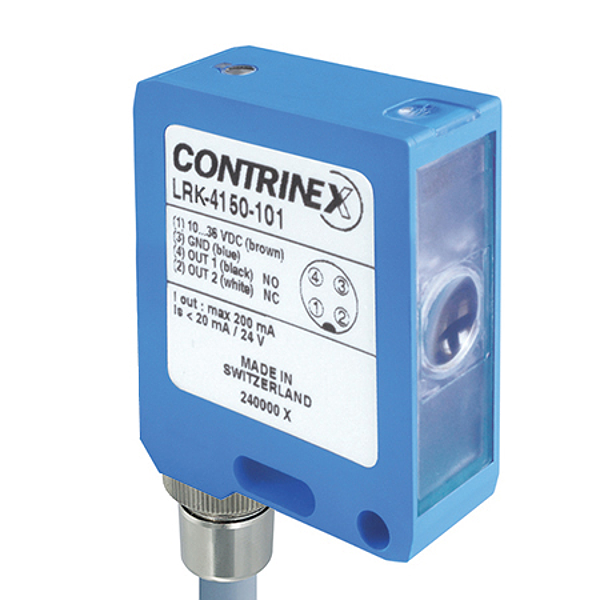

Contrinex LRK-4150-101

620-000-580

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Reflex
Light source: LED, red 680 nm
Housing size [mm]: 40 x 50
Sensitivity adjustment: 3-turn potentiometer
Polarity: NPN
Output: Light-on + Dark-on
Interface: Standard output
Connection: PVC, 2 m, 4 wire
Supply voltage: 10...36 VDC
Switching frequency max. [Hz]: 1500
Housing material: PBTP
Temperature range: -5...55 °C
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
