Article image LLS-4150-000

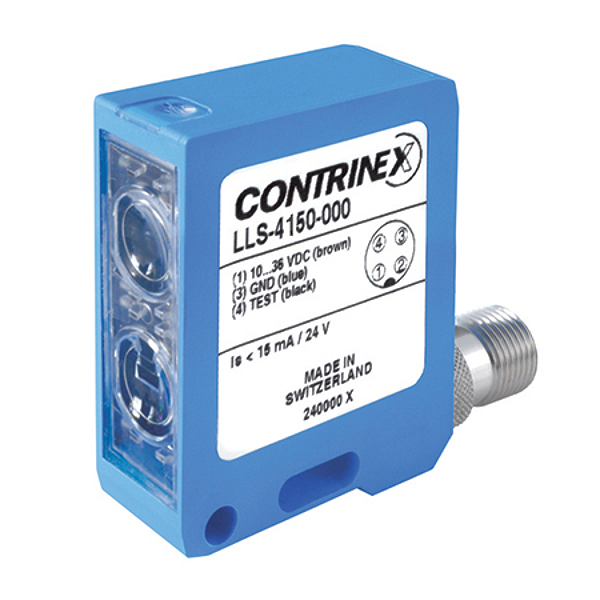

Contrinex LLS-4150-000

620-000-653

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Through-beam
Light source: LED, red 640 nm
Housing size [mm]: 40 x 50
Sensitivity adjustment: 3-turn potentiometer
Polarity: Emitter
Output: Test input
Interface: Standard output
Connection: M12 4-pin
Supply voltage: 10...36 VDC
Switching frequency max. [Hz]: 1500
Housing material: PBTP
Temperature range: -5...55 °C
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
