Article image LLS-1181L-003

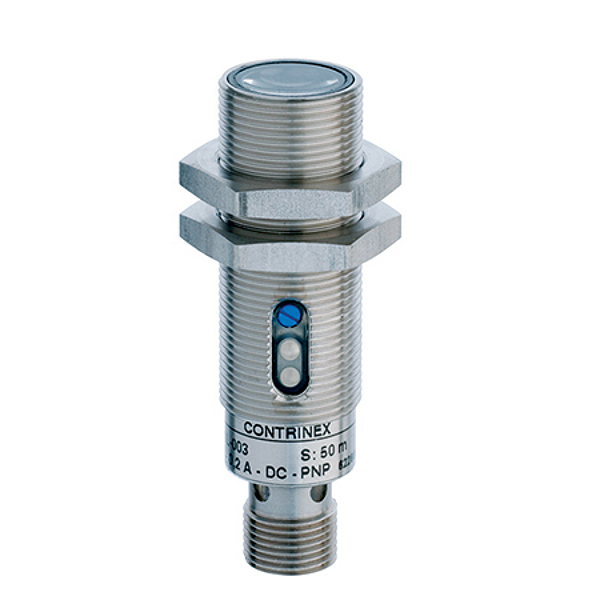

Contrinex LLS-1181L-003

620-200-557

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Through-beam
Light source: Laser class 2, red 660 nm
Housing size [mm]: M18
Sensitivity adjustment: 3-turn potentiometer
Polarity: PNP
Output: Light-on + Dark-on
Interface: Standard output
Connection: M12 4-pin
Supply voltage: 10...36 VDC
Switching frequency max. [Hz]: 5000
Housing material: Stainless steel V2A
Temperature range: -10...50 °C
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
