Article image LLR-C23PA-NMS-400

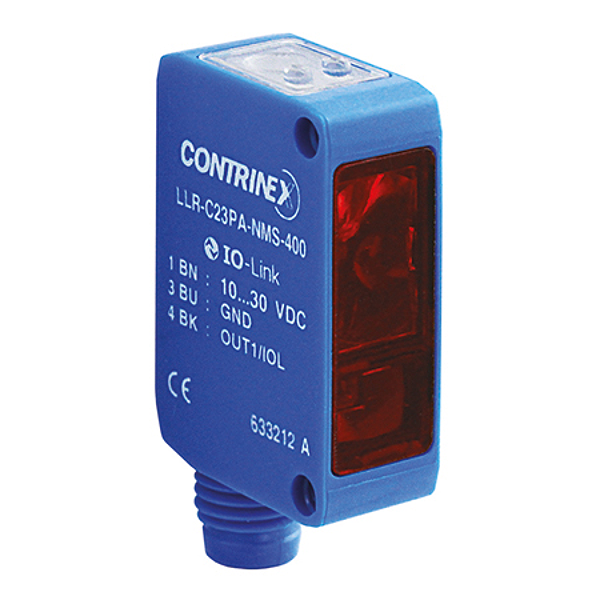

Contrinex LLR-C23PA-NMS-400

620-600-127

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Through-beam
Sensing range typ. Max.: 0...30000 mm
Light source: LED, red 630 nm
Housing size [mm]: 20 x 30 (C23)
Sensitivity adjustment: 2000…30000 mm, IO-Link
Polarity: Emitter
Output: IO-Link
Interface: IO-Link
Connection: M8 3-pin
Supply voltage: 10...30 VDC
Switching frequency max. [Hz]: 1000
Housing material: ABS
Temperature range: -25...65 °C
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
