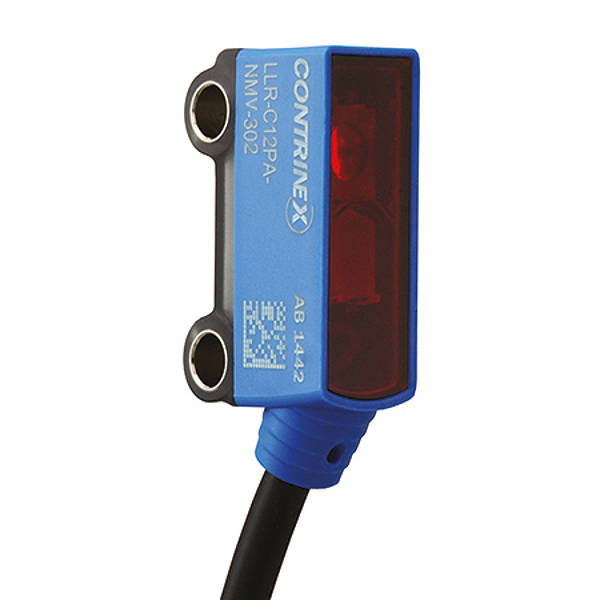

Article image LLR-C12PA-NMV-302

Contrinex LLR-C12PA-NMV-302

628-000-692

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Through-beam
Sensing range typ. Max.: 0...2000 mm
Light source: Pinpoint LED, red 640 nm
Housing size [mm]: 13 x 21 (C12)
Sensitivity adjustment: No
Polarity: NPN
Output: Dark-on
Interface: Standard output
Connection: PVC, 0.2 m + M8 3-pin
Supply voltage: 10...30 VDC
Switching frequency max. [Hz]: 800
Housing material: ABS
Temperature range: -20...50 °C
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
