Article image LLK-1181L-000

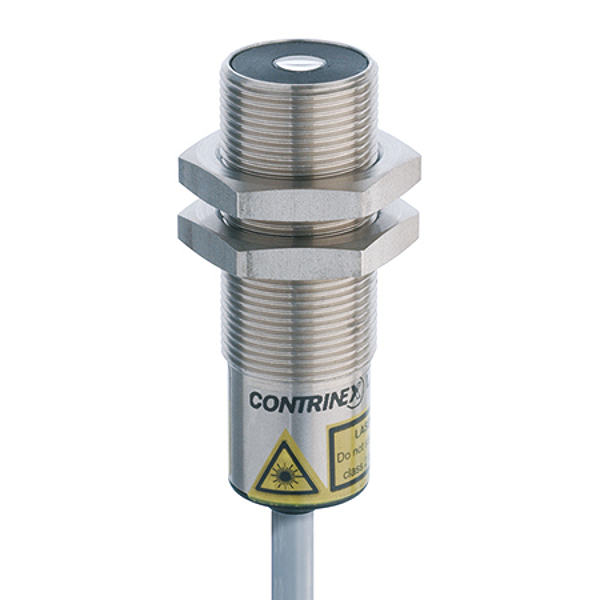

Contrinex LLK-1181L-000

620-200-559

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Through-beam
Light source: Laser class 2, red 660 nm
Housing size [mm]: M18
Sensitivity adjustment: 3-turn potentiometer
Polarity: Emitter
Output: Test input
Interface: Standard output
Connection: PVC, 2 m, 3 wire
Supply voltage: 10...36 VDC
Switching frequency max. [Hz]: 5000
Housing material: Stainless steel V2A
Temperature range: -10...50 °C
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
