Product
Contrinex
LHR-C23PA-TMS-10A
620-600-167
Request a Quote
Image copyright: Contrinex

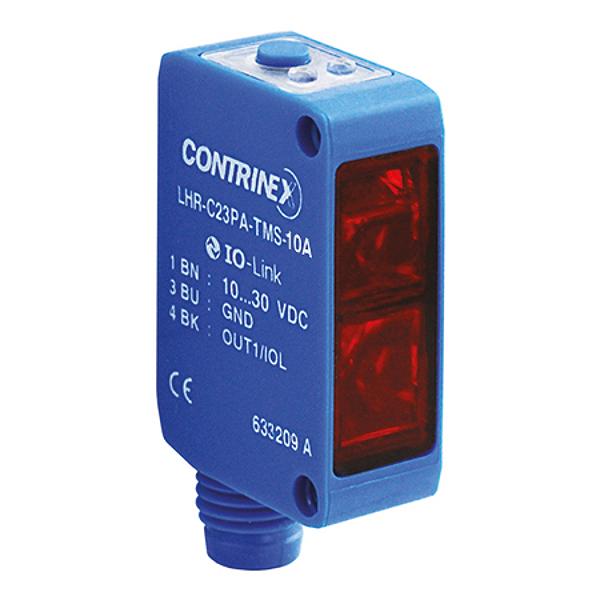

Contrinex LHR-C23PA-TMS-10A
620-600-167
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating principle: | Background suppression |
| Sensing range typ. Max.: | 10...300 mm |
| Light source: | Pinpoint LED, red 640 nm |
| Housing size [mm]: | 20 x 30 (C23) |
| Sensitivity adjustment: | 30…300 mm, teach |
| Polarity: | NPN |
| Output: | Light-on + Stability alarm |
| Interface: | Standard output |
| Connection: | M8 4-pin |
| Supply voltage: | 10...30 VDC |
| Switching frequency max. [Hz]: | 1000 |
| Housing material: | ABS |
| Temperature range: | -25...65 °C |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
