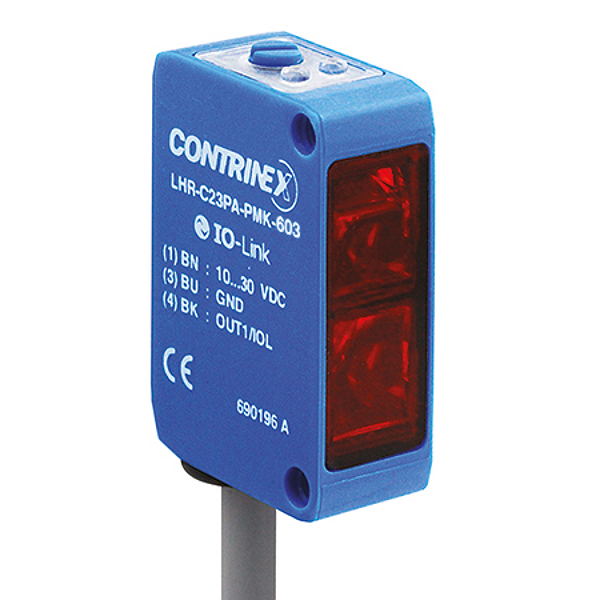

Article image LHR-C23PA-PMK-603

Contrinex LHR-C23PA-PMK-603


On Request. Please send us an email to inquire the price and avaliability.



Technical parameters

Operating principle: Background suppression
Sensing range typ. Max.: 10...300 mm
Light source: Pinpoint LED, red 640 nm
Housing size [mm]: 20 x 30 (C23)
Sensitivity adjustment: 30…300 mm, 3/4-turn pot.
Polarity: PNP
Output: Light-on/IO-Link + Dark-on
Interface: IO-Link
Connection: PVC, 2 m, 4 wire
Supply voltage: 10...30 VDC
Switching frequency max. [Hz]: 1000
Housing material: ABS
Temperature range: -25...65 °C
Enclosure rating (IP): IP 67

Logistic parameters

Country of Origin:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
