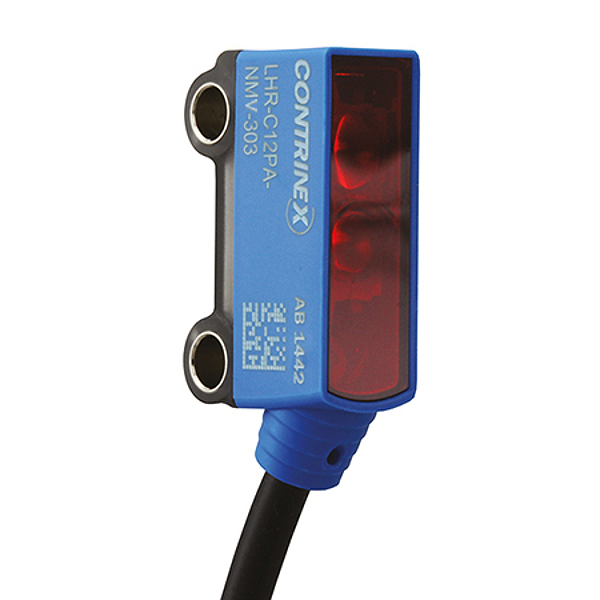

LHR-C12PA-NMV-303
628-000-676
Operating principle: | Background suppression |
Sensing range typ. Max.: | 1...36 mm |
Light source: | Pinpoint LED, red 640 nm |
Housing size [mm]: | 13 x 21 (C12) |
Sensitivity adjustment: | No |
Polarity: | PNP |
Output: | Light-on |
Interface: | Standard output |
Connection: | PVC, 0.2 m + M8 3-pin |
Supply voltage: | 10...30 VDC |
Switching frequency max. [Hz]: | 800 |
Housing material: | ABS |
Temperature range: | -20...50 °C |
Enclosure rating (IP): | IP 67 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
