Product
Contrinex
LHL-C55PA-TMS-107-501
628-000-697
Request a Quote

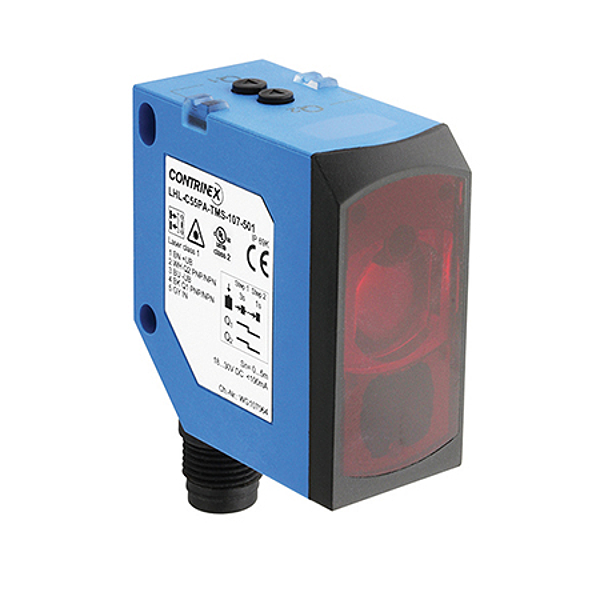

Image copyright: Contrinex
Contrinex LHL-C55PA-TMS-107-501
628-000-697
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating principle: | Background suppression |
| Light source: | Laser class 1, red 650 nm |
| Housing size [mm]: | 50 x 50 (C55) |
| Sensitivity adjustment: | Teach button/input |
| Polarity: | PNP/NPN auto-detect |
| Output: | Light-on/Dark-on + Light-on/Dark-on + Teach input |
| Interface: | Standard output |
| Connection: | M12 5-pin |
| Supply voltage: | 18...30 VDC |
| Switching frequency max. [Hz]: | 500 |
| Housing material: | ABS |
| Temperature range: | -40...60 °C |
| Enclosure rating (IP): | IP 67/IP 69K |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
