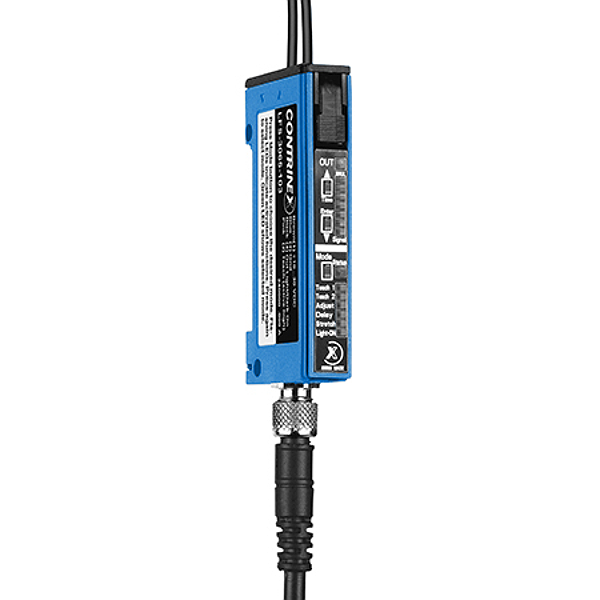

LFS-3065-103
620-000-907
Operating principle: | Fiber amplifier |
Light source: | LED, red 680 nm |
Housing size [mm]: | 31 x 60 |
Sensitivity adjustment: | Teach-in |
Polarity: | PNP |
Output: | Light-on/Dark-on + Teach input |
Interface: | Standard output |
Connection: | M8 4-pin |
Supply voltage: | 10...30 VDC |
Switching frequency max. [Hz]: | 1500 |
Housing material: | PBTP (Crastin) |
Temperature range: | -25...55 °C |
Enclosure rating (IP): | IP 64 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
