Product
Contrinex
LAS-3130-119
620-100-492
Request a Quote
Image copyright: Contrinex

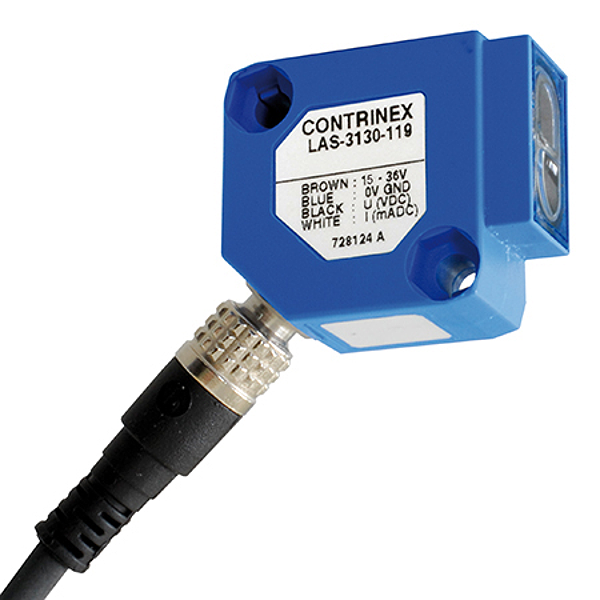

Contrinex LAS-3130-119
620-100-492
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating principle: | Analog |
| Light source: | LED, red 660 nm |
| Housing size [mm]: | 30 x 30 |
| Sensitivity adjustment: | No |
| Polarity: | Analog |
| Output: | 0...10 V + 4...20 mA |
| Interface: | Standard output |
| Connection: | M8 4-pin |
| Supply voltage: | 15...36 VDC |
| Housing material: | PBTP (Crastin) |
| Temperature range: | -25...55 °C |
| Enclosure rating (IP): | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
