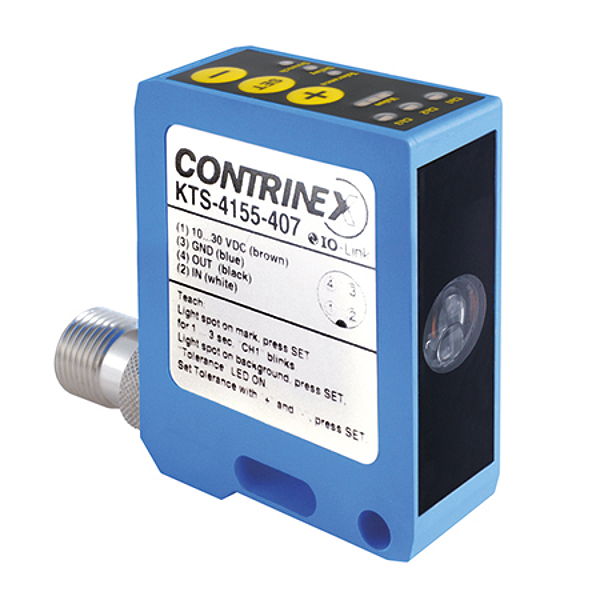

KTS-4155-407
620-000-670
Operating principle: | Contrast |
Sensing distance tolerance: | ± 2 mm |
Light source: | LED, RGB |
Housing size [mm]: | 40 x 50 |
Sensitivity adjustment: | Teach-in |
Polarity: | Push-pull |
Output: | Light-on/Dark-on + Teach/Selector input |
Interface: | IO-Link |
Connection: | M12 4-pin |
Supply voltage: | 10...30 VDC |
Switching frequency max. [Hz]: | 10000 |
Housing material: | PBTP |
Temperature range: | -5...55 °C |
Enclosure rating (IP): | IP 67 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
