Article image FTS-4155-303

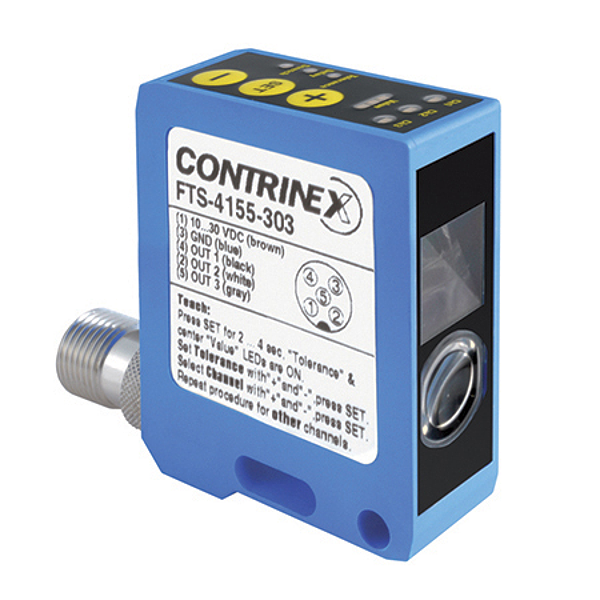

Contrinex FTS-4155-303

620-000-661

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Color
Sensing distance tolerance: ± 2 mm
Light source: LED, white
Housing size [mm]: 40 x 50
Sensitivity adjustment: Teach-in
Polarity: PNP
Output: Light-on + Light-on + Light-on
Interface: Standard output
Connection: M12 5-pin
Supply voltage: 10...30 VDC
Switching frequency max. [Hz]: 4000
Housing material: PBTP
Temperature range: -5...55 °C
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
