Contrinex
DW-LD-703-P12G-003
320-420-553
Request a Quote

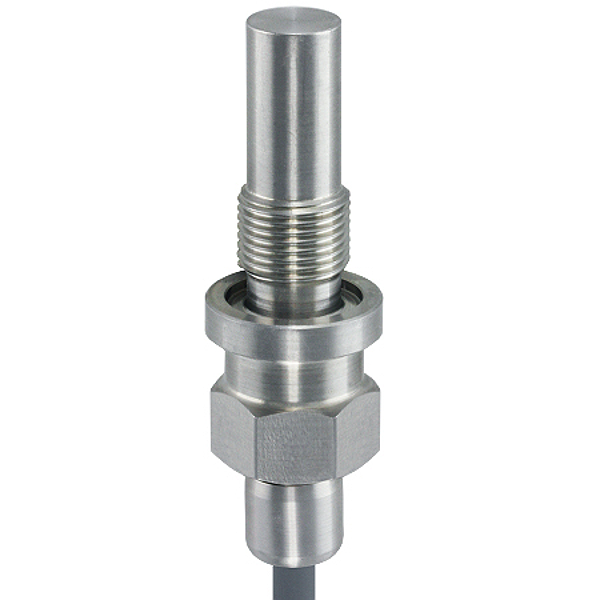

Image copyright: Contrinex
Contrinex DW-LD-703-P12G-003
320-420-553
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 1.5 mm |
| Housing size [mm]: | M12 |
| Mounting: | Embeddable |
| Polarity: | PNP |
| Output: | Normally open (NO) |
| Interface: | IO-Link |
| Connection: | PUR, 2 m, 3 wire |
| Supply voltage: | 10…30 VDC |
| Switching frequency max. [Hz]: | 850 |
| Housing material: | V4A / 1.4435 / AISI 316L |
| Enclosure rating (IP): | IP 68 / IP 69K |
| Operating pressure [bar]: | ? 500 bar / ? 800 bar peak |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
