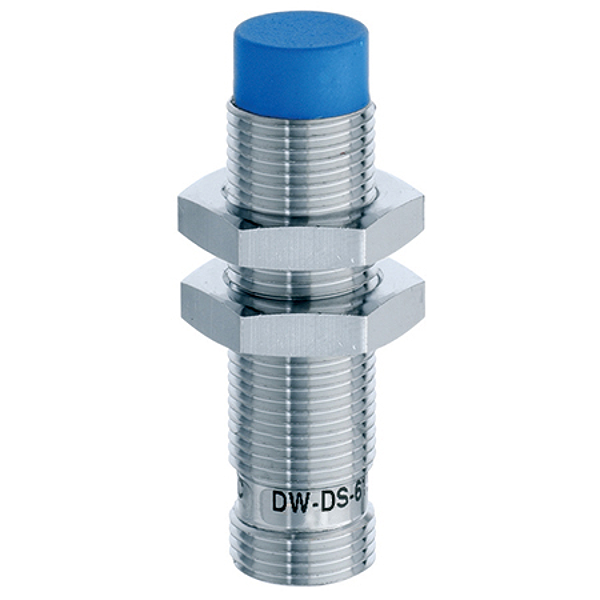

DW-DS-616-M12-120
220-820-072
Operating distance Sn: | 4 mm |
Housing size [mm]: | M12 |
Mounting: | Non-embeddable |
Polarity: | 2-wire |
Output: | Normally closed (NC) |
Interface: | Standard output |
Connection: | M12 4-pin |
Supply voltage: | 10…65 VDC |
Switching frequency max. [Hz]: | 2500 |
Housing material: | Chrome-plated brass |
Enclosure rating (IP): | IP 67 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
