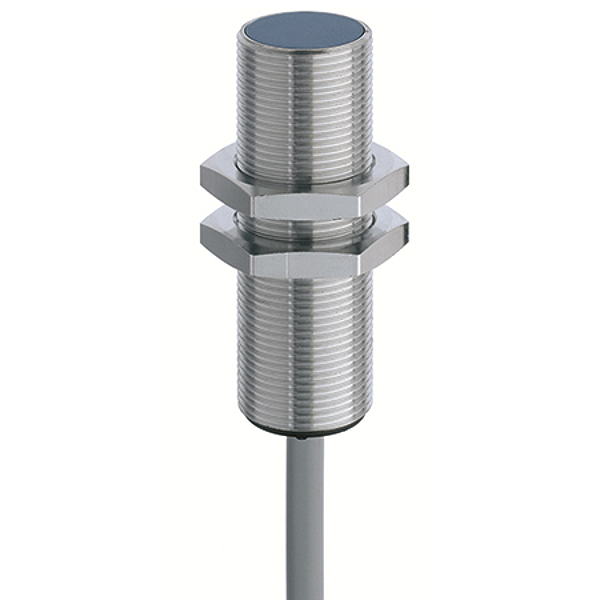

Article image DW-DD-606-M18

Contrinex DW-DD-606-M18

220-820-171

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating distance Sn: 5 mm
Housing size [mm]: M18
Mounting: Embeddable
Polarity: 2-wire
Output: Normally closed (NC)
Interface: Standard output
Connection: PVC, 2 m, 2 wire
Supply voltage: 10…65 VDC
Switching frequency max. [Hz]: 1500
Housing material: Chrome-plated brass
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
