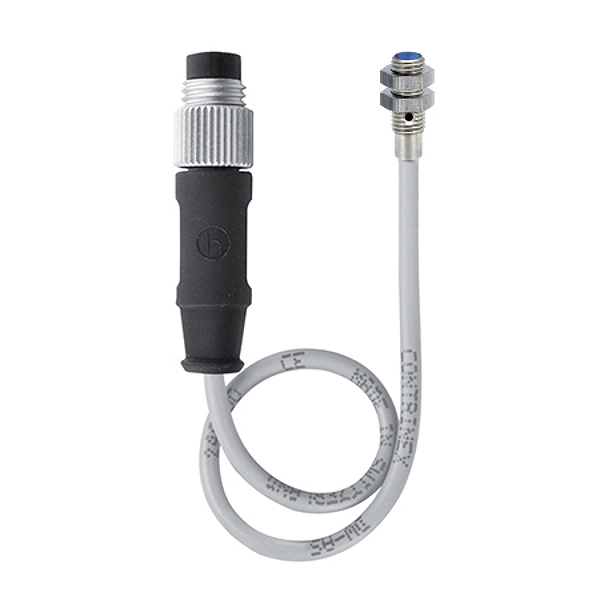

Article image DW-AV-623-M4-966

Contrinex DW-AV-623-M4-966

320-320-007

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating distance Sn: 1 mm
Housing size [mm]: M4
Mounting: Embeddable
Polarity: PNP
Output: Normally open (NO)
Interface: IO-Link
Connection: PUR, 0.2 m + M8 3-pin
Supply voltage: 10…30 VDC
Switching frequency max. [Hz]: 8000
Housing material: Stainless-steel V2A
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
