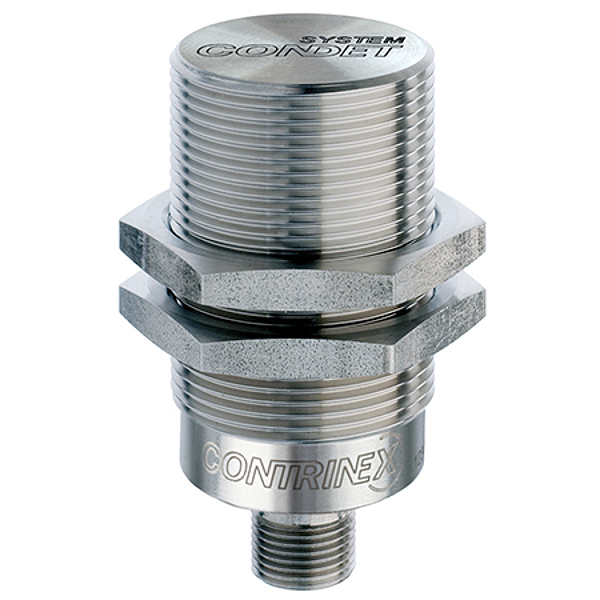

Article image DW-AS-701-M30-BAS

Contrinex DW-AS-701-M30-BAS

320-720-106

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating distance Sn: 10 mm
Housing size [mm]: M30
Mounting: Embeddable
Polarity: NPN
Output: Normally open (NO)
Interface: Standard output
Connection: M12 4-pin
Supply voltage: 10…30 VDC
Switching frequency max. [Hz]: 50
Housing material: V2A / 1.4305 / AISI 303
Enclosure rating (IP): IP 68 / IP 69K
Operating pressure [bar]: ? 40 bar

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
