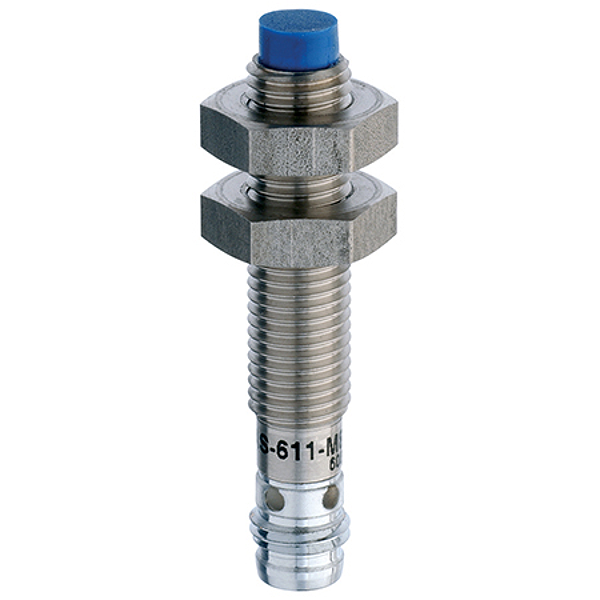

Article image DW-AS-611-M8-001

Contrinex DW-AS-611-M8-001

320-520-042

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating distance Sn: 2.5 mm
Housing size [mm]: M8
Mounting: Non-embeddable
Polarity: NPN
Output: Normally open (NO)
Interface: Standard output
Connection: M8 3-pin
Supply voltage: 10…30 VDC
Switching frequency max. [Hz]: 4500
Housing material: Stainless-steel V2A
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
