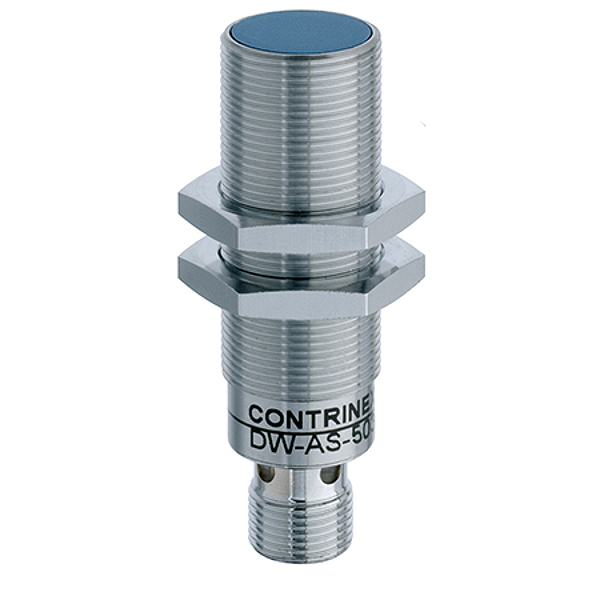

DW-AS-503-M18-002
320-520-619
Operating distance Sn: | 12 mm |
Housing size [mm]: | M18 |
Mounting: | Quasi-embeddable |
Polarity: | PNP |
Output: | Normally open (NO) |
Interface: | IO-Link |
Connection: | M12 4-pin |
Supply voltage: | 10…30 VDC |
Switching frequency max. [Hz]: | 600 |
Housing material: | Chrome-plated brass |
Enclosure rating (IP): | IP 67 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
