Article image DW-AS-503-065

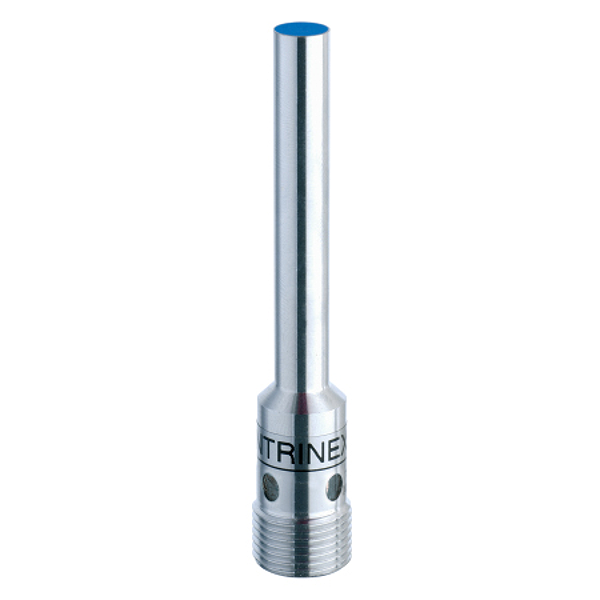

Contrinex DW-AS-503-065

320-020-963

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating distance Sn: 3 mm
Housing size [mm]: Ø 6.5
Mounting: Quasi-embeddable
Polarity: PNP
Output: Normally open (NO)
Interface: IO-Link
Connection: M12 4-pin
Supply voltage: 10…30 VDC
Switching frequency max. [Hz]: 1000
Housing material: Chrome-plated brass
Enclosure rating (IP): IP 67

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
