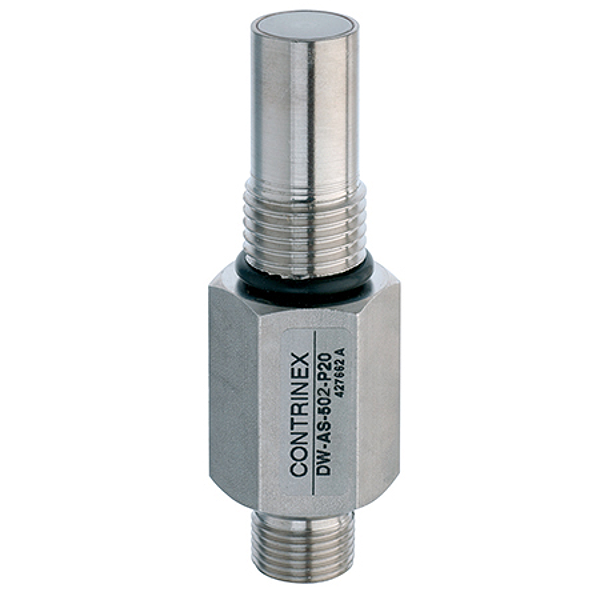

DW-AS-502-P20
320-520-910
Operating distance Sn: | 3 mm |
Housing size [mm]: | M14 |
Mounting: | Embeddable |
Polarity: | NPN |
Output: | Normally closed (NC) |
Interface: | Standard output |
Connection: | M12 4-pin |
Supply voltage: | 10…30 VDC |
Switching frequency max. [Hz]: | 500 |
Housing material: | Stainless-steel V4A (DIN 1.4435 / AISI 316 L) |
Enclosure rating (IP): | IP 68 |
Operating pressure [bar]: | ? 500 bar / ? 1000 bar peak |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
