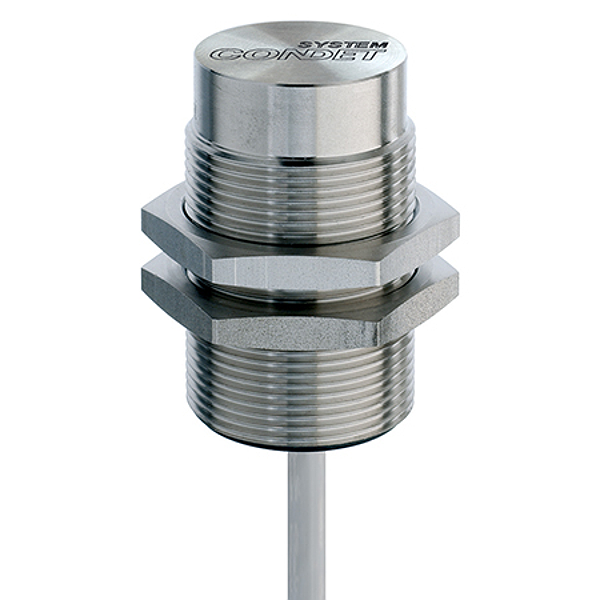

DW-AD-711-M30
320-420-251
Operating distance Sn: | 40 mm |
Housing size [mm]: | M30 |
Mounting: | Non-embeddable |
Polarity: | NPN |
Output: | Normally open (NO) |
Interface: | Standard output |
Connection: | PUR, 2 m, 3 wire |
Supply voltage: | 10…30 VDC |
Switching frequency max. [Hz]: | 90 |
Housing material: | V2A / 1.4305 / AISI 303 |
Enclosure rating (IP): | IP 68 / IP 69K |
Operating pressure [bar]: | ? 40 bar |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
