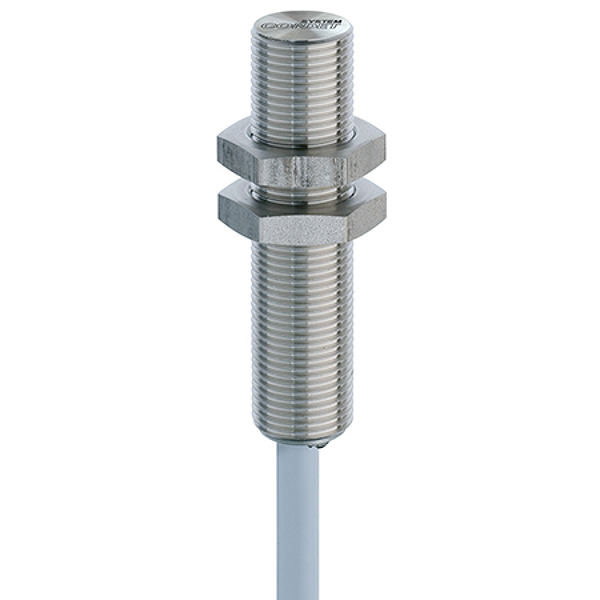

Article image DW-AD-703-M12-303

Contrinex DW-AD-703-M12-303

320-420-417

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating distance Sn: 2 mm
Housing size [mm]: M12
Mounting: Embeddable
Polarity: PNP
Output: Normally open (NO)
Interface: IO-Link
Connection: PUR, 2 m, 3 wire
Supply voltage: 10…30 VDC
Switching frequency max. [Hz]: 900
Housing material: V2A / 1.4305 / AISI 303
Enclosure rating (IP): IP 68 / IP 69K
Operating pressure [bar]: ? 80 bar

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
