Contrinex
DW-AD-504-P8
320-520-904
Request a Quote
Image copyright: Contrinex

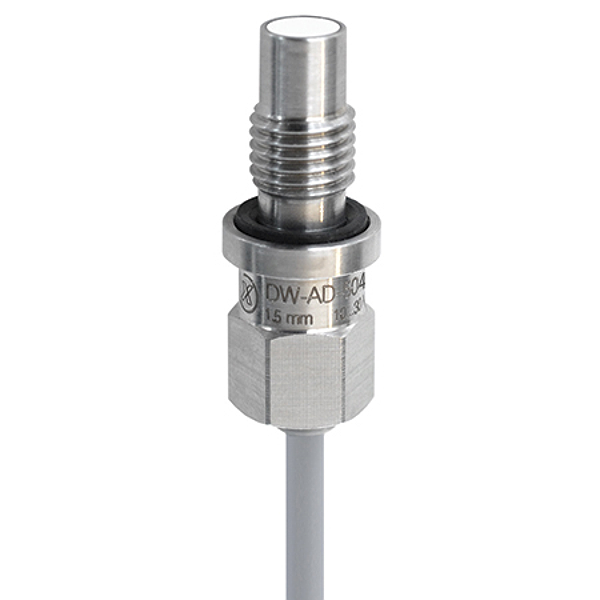

Contrinex DW-AD-504-P8
320-520-904
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Operating distance Sn: | 1.5 mm |
| Housing size [mm]: | M8 |
| Mounting: | Embeddable |
| Polarity: | PNP |
| Output: | Normally closed (NC) |
| Interface: | Standard output |
| Connection: | PUR, 2 m, 3 wire |
| Supply voltage: | 10…30 VDC |
| Switching frequency max. [Hz]: | 800 |
| Housing material: | Stainless-steel V4A (DIN 1.4404 / AISI 316 L) |
| Enclosure rating (IP): | IP 68 |
| Operating pressure [bar]: | ? 500 bar |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
