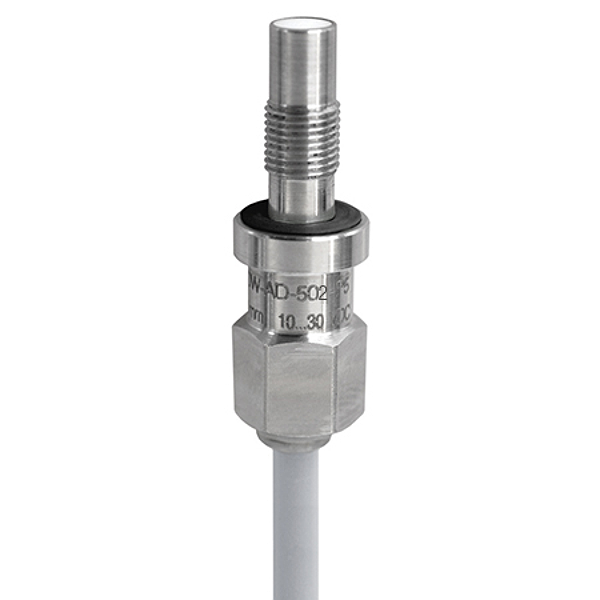

Article image DW-AD-502-P5

Contrinex DW-AD-502-P5

320-520-914

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating distance Sn: 1 mm
Housing size [mm]: M5
Mounting: Embeddable
Polarity: NPN
Output: Normally closed (NC)
Interface: Standard output
Connection: PUR, 2 m, 3 wire
Supply voltage: 10…30 VDC
Switching frequency max. [Hz]: 1000
Housing material: Stainless-steel DIN 2.4711 (Phynox)
Enclosure rating (IP): IP 68
Operating pressure [bar]: ? 500 bar

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
