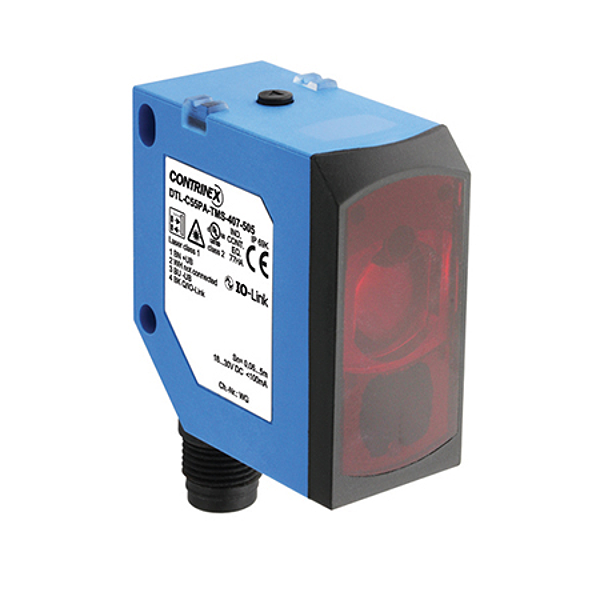

Article image DTL-C55PA-TMS-407-505

Contrinex DTL-C55PA-TMS-407-505

628-000-702

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Downloads

Technical parameters

Operating principle: Distance diffuse
Linearity: ± 30 mm
Light source: Laser class 1, red 655 nm
Housing size [mm]: 50 x 50 (C55)
Sensitivity adjustment: Teach button/input
Polarity: PNP/NPN auto-detect
Output: Light-on/Dark-on/IO-Link + Teach input
Interface: IO-Link
Connection: M12 4-pin
Supply voltage: 18...30 VDC
Switching frequency max. [Hz]: 500
Housing material: ABS
Temperature range: -40...60 °C
Enclosure rating (IP): IP 67/IP 69K

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
