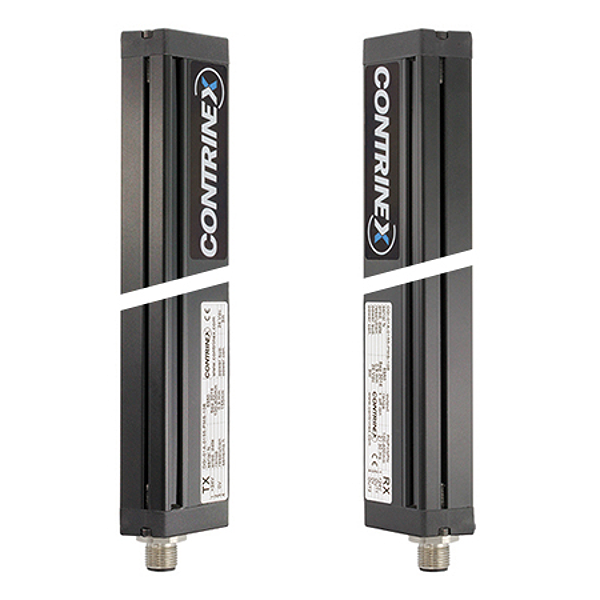

DGI-25A-0960-NMS-107
605-000-738
Operating principle: | Detection grid |
Sensing range typ. Max.: | 300…8000 mm |
Light source: | Led, infrared |
Housing size [mm]: | 40 x 20.5 (Light Grid) |
Light grid height [mm]: | 980 mm |
Sensitivity adjustment: | No |
Polarity: | Push-pull |
Output: | Light-on + Dark-on |
Interface: | Standard output |
Connection: | M12 4-pin |
Supply voltage: | 19.2...28.8 VDC |
Housing material: | Aluminium |
Temperature range: | -5...50 °C |
Enclosure rating (IP): | IP 65 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
