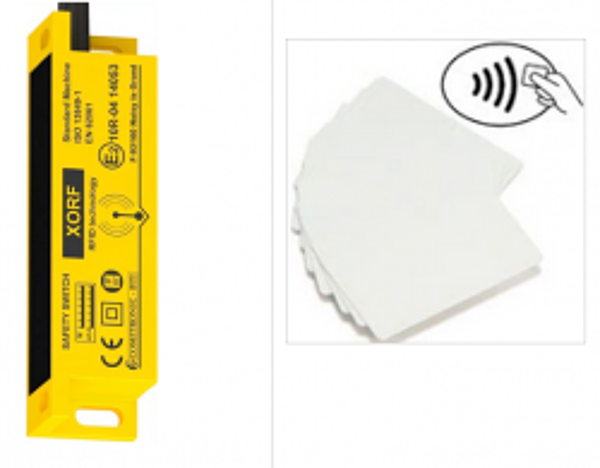

Comitronic-BTI XORFSA/MKT
XORF-SA/MKT - With management card
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Controls the position of security doors with RFID encoding for wheeled vehicles. RFID sensor with 16 million codes. Suitable for metallic environments. Programmable code through auto-learning (no software or PC). Level of performance with AWAX controller: up to PL = e. Safety category: up to 4 (EN 954-1) with AWAX controller. Time to dangerous failure: MTTFd = 40 years
Technical parameters
| Max activation distance: | up to 24 mm Security contact/diagnostics 2 x redundant NO 50mA/30V and 1 x 50mA auxiliary PNP Detection encoding inviolable multicode Indicator LED indicates code recognition Reset automatic Attachment 4 tamper-proof M4 screws (in base option BH4) Mounting position 2 (double wall brackets) Material PA6 Electrical Connection 50cm PUR cable with M12 connector Sealing IP 68 Standing room temperature -30 °C to +50 °C. Storage temperature -40 °C to +85 °C Marking pad printing + serial number for traceability Certificate E2 10R-04 14053 (UTAC) ISO 7637-2 (Pulse 1, 2a, 2b, 3a, 3b, 4) |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
