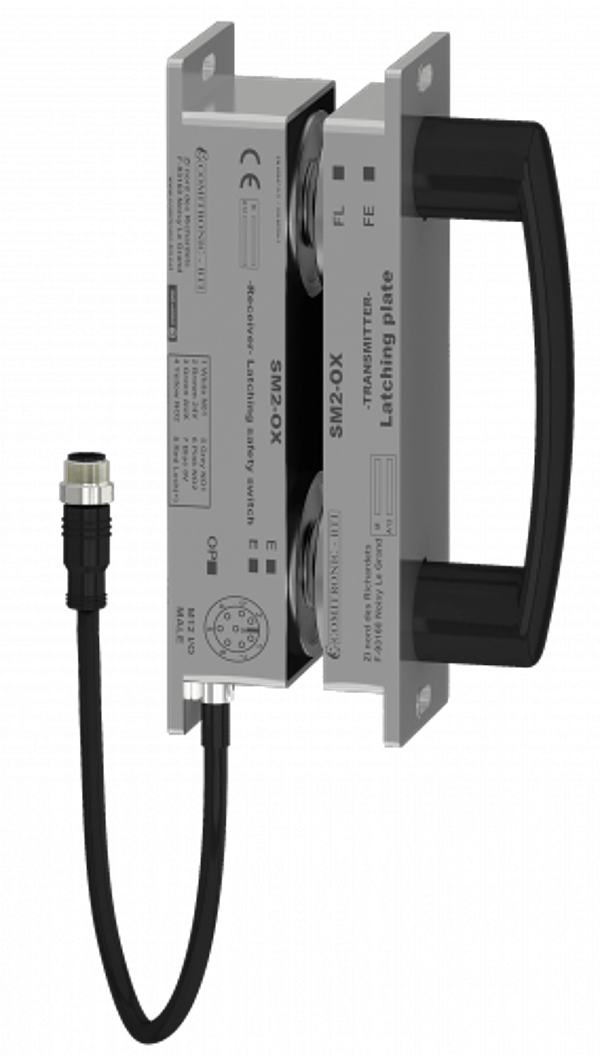

Article image SM2-NDP-OX-R-FL

Comitronic-BTI SM2-NDP-OX-R-FL

SUPERMAGNET 2 INOX VENTOUSE INOX

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Electromagnetic safety lock control with 936 N force and 100% stainless steel

Technical parameters

No power or under-voltage locking on machine casings Machine protection closing control for harsh environments Antimicrobial handle available   Level of performance with AWAX controller: up to PL = e Safety category up to 4 with AWAX controller or PLC SIL 3 Time before dangerous failure MTTFd = 100 years Maximum detection activation distance 2 mm Holding force up to 936 N (ref. version + OX-R) or up to 820 N (ref. version + OX-E) Safety contacts/diagnostics 2 x NO 250mA max/24V redundant and 1 x PNP 250mA Detection encoding mono-code inviolable Reset automatic or controlled (ref. + OP) Housing mount 4 tamper-proof M6 screws (optional ref BH6) Handle attachment 2 M8 screws Mounting position 1 Casing material 316L stainless steel mirror polished (OX version) Suction cup material Magnetic INOX (ref. + OX) Electrical Connection 50cm PUR cord with M12 connector Water resistance IP 69K Temperature -25°C to +50°C (thermal protection for suction cups in case of overheating due to a persistent command) Marking laser engraving with mechanically punched serial number for permanent traceability   Nota

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
